Miniature hexapod robot

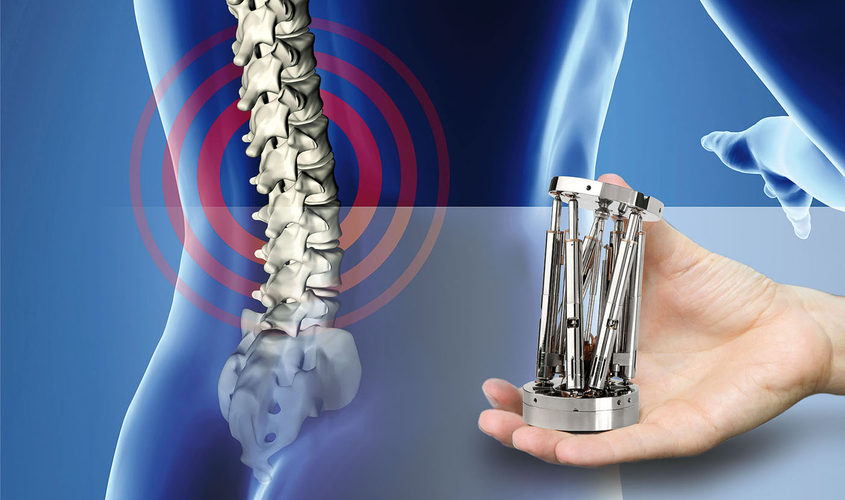

Fitting pedicle screws or other implants in the spinal column requires extremely precise surgical procedures. To reduce the risk of human error and to favor minimally invasive micro-surgery techniques, a company has developed a new operating procedure involving a miniature hexapod. It instructed MPS Microsystems to manufacture the micro robot. With a diameter of 50 mm, 80 mm in height and weighing 330 grams, this hexapod is the smallest on the market. The miniature hexapod has a unique structure comprising 6 linear actuators.

Characteristics

Height: 80 mm
Diameter: 50 mm
Weight: 330 g
Range: x-y, ± 20 mm; z, 15.3 mm
Angle around x and y: ± 12 degrees
Angle around z: ± 30 degrees

Download

  • Solutions for the medical industry
    PDF
  • White paper - Innovation for active implants
    PDF

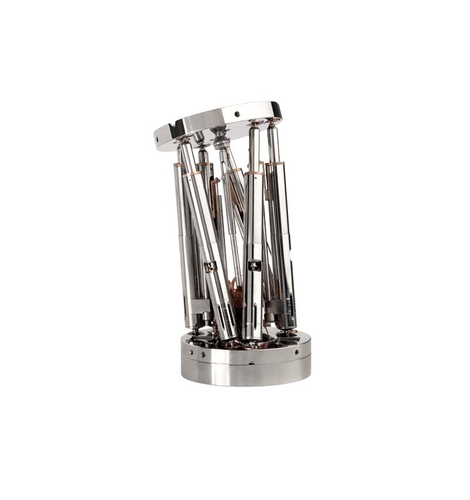

Structure of the miniature hexapod

The structure of the miniature hexapod comprises 6 linear actuators, each made up of:

  • A Faulhaber brushless motor, diameter 5 mm
  • A planetary gearhead with 1:125 reduction ratio
  • A screw-nut of 1.5 mm in diameter
  • A miniature inductive linear encoder

Each actuator, driven in closed loop, achieves a positioning accuracy of 1 micron over a total stroke of 15.3 mm.
