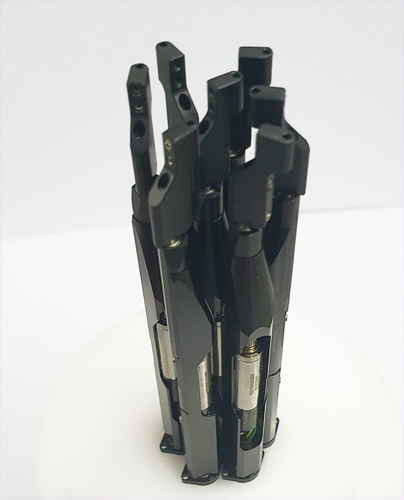

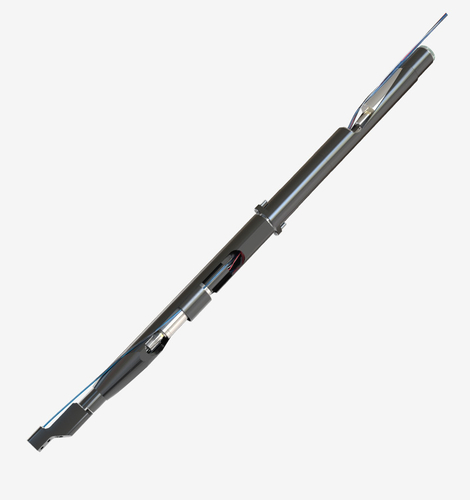

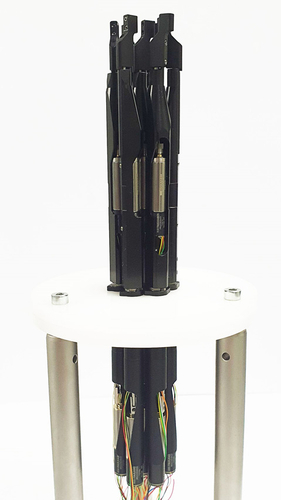

모듈식 Theta/Phi 파이버 포지셔너

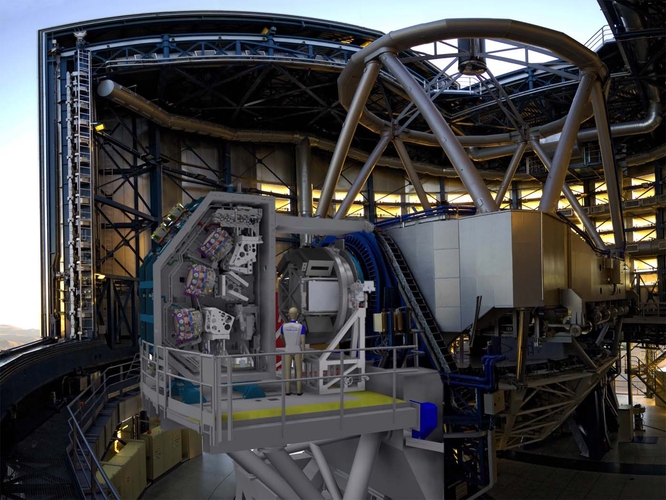

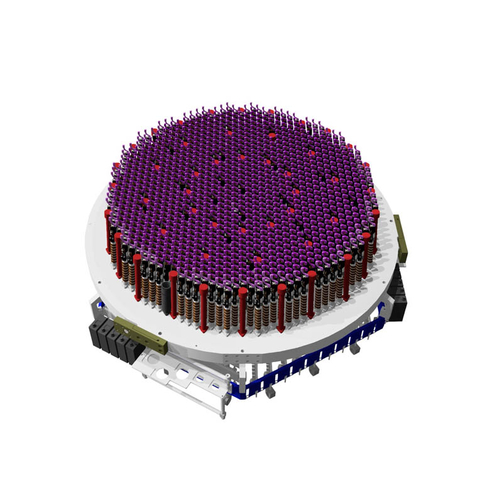

과거의 성공적인 프로젝트 실현에 대한 검증된 경험을 바탕으로 MPS는 Multi-Object Spectrographs를 위한 확장 가능한 Theta/Phi 파이버 포지셔너를 설계하고 특성화했습니다. 포지셔너는 광섬유의 정확한 위치 지정이 필요한 모든 다중 객체 분광기의 요구 사항에 쉽게 적응할 목적으로 설계되었습니다. MOONS, FPS, 메가라, DESI 중 어느 것이든 간에, 각 프로젝트는 지금까지 자체 파이버 포지셔너를 처음부터 개발했으며, 모든 위험과 긴 리드 타임은 이러한 완전한 새로운 개발과 연결되어 있습니다. 여기에 제시된 포지셔너는 개발 시간과 비용을 크게 줄이고 예기치 않은 위험을 제거하기 위한 것입니다. 디자인은 크기, 길이 및 모양을 쉽게 확장할 수 있습니다. 포지셔너 크기는 직경 9.5mm에서 시작하며 고객의 특정 요구 사항에 맞게 확장할 수 있습니다. 단 두 번의 동작으로 5 µm 이내의 모든 대상에 도달할 수 있습니다.

특성

Diameter : 9,5 mm
Diameter covered by the fiber : 12 mm

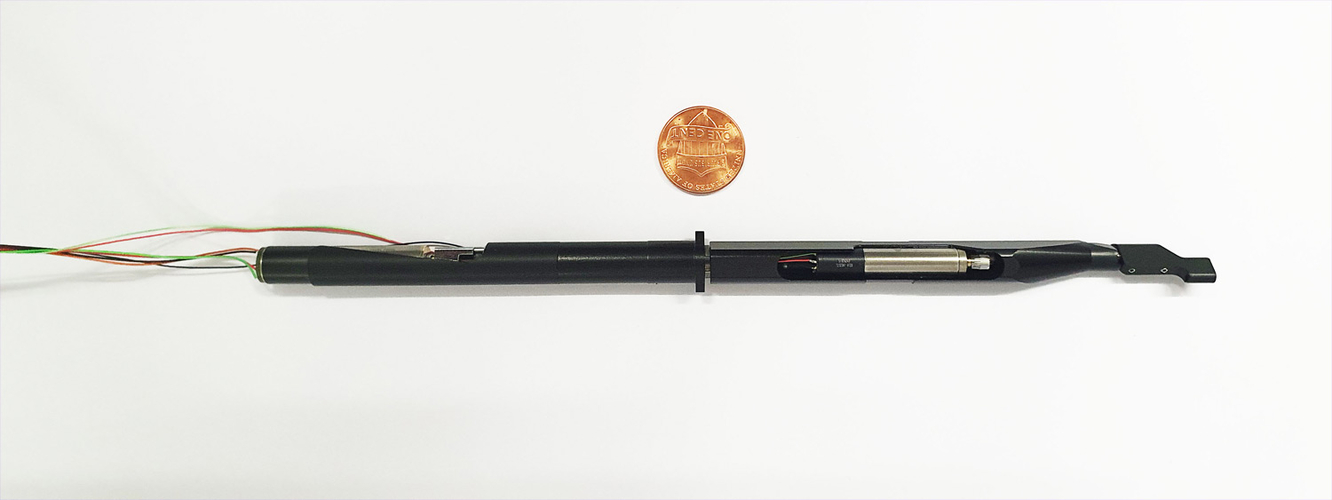

Total length : 265 mm
Motor drive - Theta arm : 1 Faulhaber Stepper DM0620 motor with 1024:1 reduction gearhead
Motor drive - Phi arm : 1 Faulhaber Stepper AM0820 motor with 1024:1 reduction gearhead
X-Y positionning accuracy : < 5 µm
Repeatability : < 2.5 µm
Inclination of the fiber relative to the X-Y plane : < 0.2° RMS
Theta arm rotation : 370°
Phi arm rotation : 185°
