An innovative way of mounting the oscillating way on the bearing
Oscrew

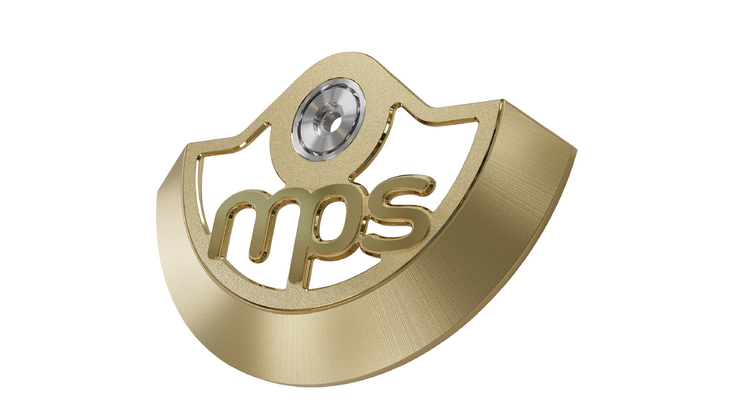

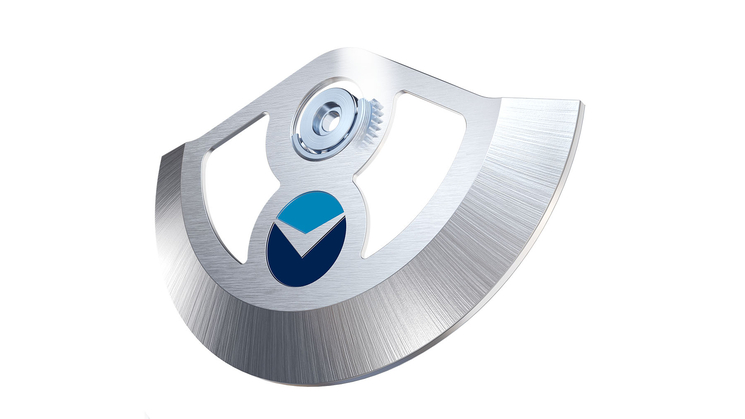

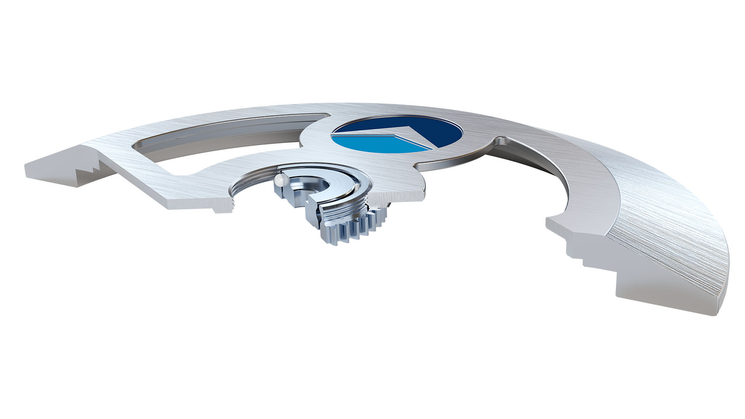

The Oscrew product is a new system for attaching oscillating weights to bearings. It is intended for rotors with a clean design, allows the oscillating weight to be removable and doesn't require additional components. The Oscrew oscillating weight has a threaded center diameter that allows it to be screwed directly onto the outer ring of the bearing.
The Oscrew system offers a clean aesthetic similar to that of the crimped rotors. It is removable and requires no additional components. The best of all current solutions is thus concentrated in the innovative Oscrew system for which a patent has been filed by MPS.
Laboratory tests have proven the reliability of this solution. Rotors were subjected to vibrations, repeated shocks and shocks of 5'000 g. The use of the Oscrew system is thus possible for all types of products, including sports watches exposed to the most difficult conditions.
Oscillating weights are available in tungsten and precious metal.
In recent movements, the rotation of the oscillating weight is generally ensured by a ball bearing, the whole forming the rotor of the automatic watch. There are several methods of fixing the bearing on the oscillating weight:
In terms of aesthetics, Oscrew is similar to the crimped rotors. However, its innovative mounting system is far superior to crimping. Coupled with a clean appearance and the advantage of being removable, Oscrew therefore combines all the advantages of other solutions in a single system.
We’ve noticed that assembling the weight on the bearing can cause significant scrap levels at some of our customers. Our engineers’ response, as specialists in micro-assembly, was to develop models and processes to predict the influence that press-fitting and riveting will have on operating play in the bearing while also considering the different materials used. Thus, MPS Watch is able to guarantee a reliable and repeatable assembly process without generating any scrap due to the operating procedure. Finally, optimised logistic management provides responsiveness and flexibility.
