Conventional bearing – Construction bases

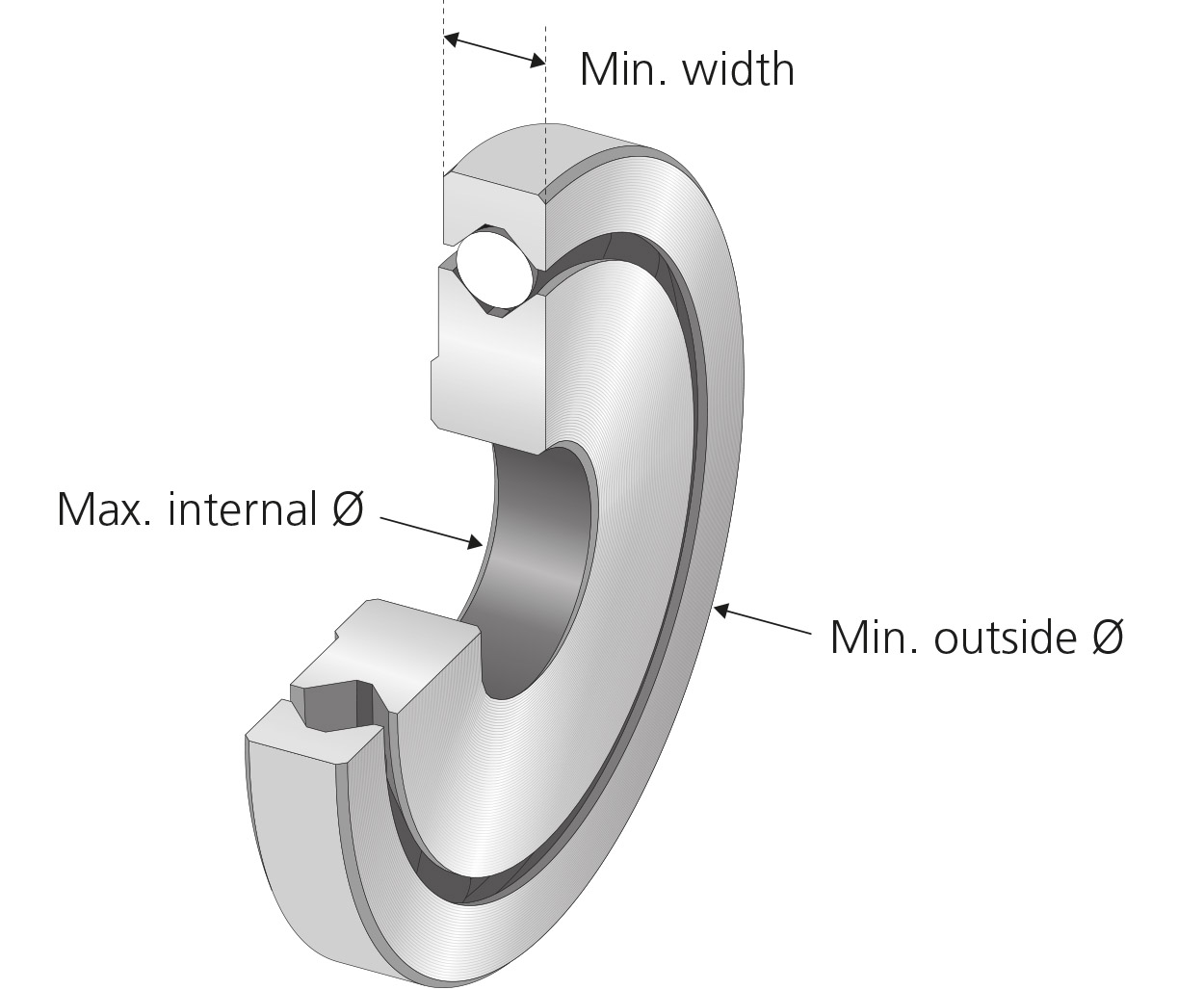

You have selected the construction type you need: the conventional bearing. Design your bearing starting from our construction bases and save yourself development and tooling costs. The table below shows the minimum possible dimensions around the raceway. From this base, you design a bearing adapted to the special features of your construction. Select the reference before moving on to the next step: choice of decoration. If no selection is suitable, move to the next step.
 |
| Reference | pitch Ø | ball Ø | nb. | int. Ø max | ext. Ø min | width min | |||
|---|---|---|---|---|---|---|---|---|---|
| 20 - 112 | 1.12 | 0.2 | 5 | 0.35 | 1.6 | 0.4 | STEP | DXF | |
| 25 - 140 | 1.4 | 0.25 | 5 | 0.4 | 2.1 | 0.5 | STEP | DXF | |
| 30 - 140 | 1.4 | 0.3 | 5 | 0.4 | 2.1 | 0.5 | STEP | DXF | |
| 30 - 150 | 1.5 | 0.3 | 5 | 0.4 | 2.2 | 0.5 | STEP | DXF | |
| 25 - 160 | 1.6 | 0.25 | 5 | 0.74 | 2.2 | 0.5 | STEP | DXF | |
| 30 - 160 | 1.6 | 0.3 | 7 | 0.6 | 2.3 | 0.5 | STEP | DXF | |
| 30 - 190 | 1.9 | 0.3 | 7 | 0.8 | 2.6 | 0.5 | STEP | DXF | |
| 40 - 192 | 1.92 | 0.4 | 7 | 0.8 | 2.9 | 0.6 | STEP | DXF | |
| 30 - 200 | 2 | 0.3 | 5 | 0.8 | 2.7 | 0.5 | STEP | DXF | |
| 40 - 210 | 2.1 | 0.4 | 7 | 0.8 | 3 | 0.6 | STEP | DXF | |
| 30 - 230 | 2.3 | 0.3 | 7 | 1.1 | 3 | 0.5 | STEP | DXF | |
| 25 - 250 | 2.5 | 0.25 | 5 | 1.4 | 3.1 | 0.5 | STEP | DXF | |
| 40 - 271 | 2.71 | 0.4 | 7 | 1.3 | 3.6 | 0.6 | STEP | DXF | |
| 40 - 280 | 2.8 | 0.4 | 7 | 1.25 | 3.7 | 0.6 | STEP | DXF | |
| 50 - 290 | 2.9 | 0.5 | 7 | 1.2 | 4 | 0.75 | STEP | DXF | |
| 30 - 300 | 3 | 0.3 | 7 | 1.6 | 3.7 | 0.5 | STEP | DXF | |
| 40 - 300 | 3 | 0.4 | 7 | 1.4 | 4 | 0.6 | STEP | DXF | |
| 40 - 350 | 3.5 | 0.4 | 7 | 2.1 | 4.5 | 0.6 | STEP | DXF | |
| 30 - 355 | 3.55 | 0.3 | 7 | 1.8 | 4.3 | 0.5 | STEP | DXF | |
| 40 - 370 | 3.7 | 0.4 | 7 | 2.25 | 4.6 | 0.6 | STEP | DXF | |
| 40 - 390 | 3.9 | 0.4 | 7 | 2.5 | 4.8 | 0.65 | STEP | DXF | |
| 25 - 395 | 3.95 | 0.25 | 7 | 3 | 4.9 | 0.6 | STEP | DXF | |
| 40 - 410 | 4.1 | 0.4 | 7 | 2.7 | 5.1 | 0.7 | STEP | DXF | |
| 50 - 410 | 4.1 | 0.5 | 7 | 2.3 | 5.3 | 0.75 | STEP | DXF | |
| 60 - 430 | 4.3 | 0.6 | 7 | 2 | 5.7 | 1 | STEP | DXF | |
| 50 - 450 | 4.5 | 0.5 | 7 | 2.8 | 5.7 | 0.75 | STEP | DXF | |
| 40 - 470 | 4.7 | 0.4 | 7 | 3.3 | 5.6 | 0.7 | STEP | DXF | |
| 50 - 470 | 4.7 | 0.5 | 7 | 2.9 | 5.9 | 0.75 | STEP | DXF | |
| 50 - 495 | 4.95 | 0.5 | 7 | 2.8 | 6 | 0.75 | STEP | DXF | |
| 40 - 500 | 5 | 0.4 | 7 | 3.4 | 6 | 0.7 | STEP | DXF | |
| 50 - 530 | 5.3 | 0.5 | 7 | 3.8 | 6.5 | 0.75 | STEP | DXF | |
| 40 - 547 | 5.47 | 0.4 | 7 | 3.8 | 6.6 | 0.7 | STEP | DXF | |
| 50 - 570 | 5.7 | 0.5 | 7 | 4.15 | 6.9 | 0.85 | STEP | DXF | |
| 40 - 595 | 5.95 | 0.4 | 7 | 4.2 | 7.2 | 0.7 | STEP | DXF | |
| 50 - 700 | 7 | 0.5 | 9 | 5 | 8.2 | 0.85 | STEP | DXF | |
| 50 - 720 | 7.2 | 0.5 | 7 | 5.5 | 8.5 | 1 | STEP | DXF | |
| 40 - 731 | 7.31 | 0.4 | 9 | 5.7 | 8.5 | 1 | STEP | DXF | |
| 50 - 775 | 7.75 | 0.5 | 5 | 6 | 8.9 | 1 | STEP | DXF | |
| 40 - 940 | 9.4 | 0.4 | 9 | 6.8 | 10.6 | 1 | STEP | DXF | |
| 50 -1155 | 11.55 | 0.5 | 9 | 9 | 12.7 | 1 | STEP | DXF | |
| 60 -1892 | 18.92 | 0.6 | 9 | 17.2 | 20.2 | 1.5 | STEP | DXF |
