High-precision linear actuators for demanding applications. Customizable miniature plug & play actuators consisting of different types of micromotors and ball screws.


Linear actuator for optical applications
Linear actuator for optical applications

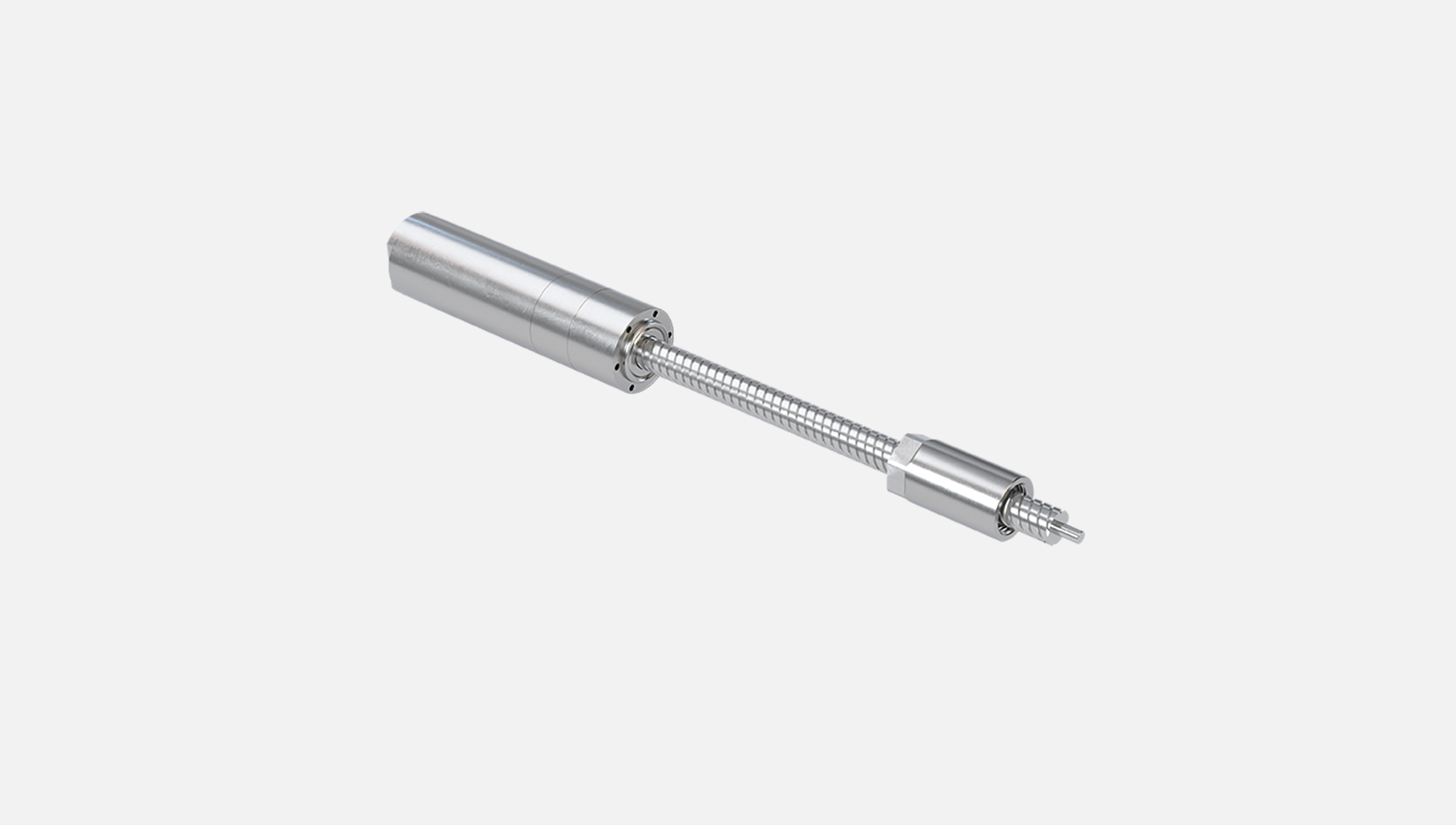

Ball screw linear actuator Ø22mm suitable for optical applications

  • Plug and play solution, easy to integrate
  • Combination : motor Ø22mm + nearly 0 backlash (max 0,15°) compliant coupling + preloaded duplex ball bearings + ball screw
  • Optimized low outgassing lubricants (measured according to optical industry standards)
  • Optimized lubricants for  best smoothness (no stick and slip)
  • Compatible with different ball screws and motor types
  • Shielded ball bearings to prevent contamination from the motor side to the application
  • Sealed version (bellow) available to prevent any cross contamination

Linear actuator with planetary gearhead
Linear actuator with planetary gearhead

Ball screw linear actuator integrating a Ø15mm or Ø12mm planetary gearhead

  • Plug and play Ø12 or Ø15mm actuator, easy to integrate
  • Combination : motor + low backlash gearhead (max 1°) + preloaded duplex ball bearings + high precision ball screw
  • Excellent positioning precision of the combination with stepper motors in open loop
  • Axial force of 400N can be generated
  • Ball screws available : pitch 1-2mm, Ø4-Ø6mm, length easily customizable
  • Option : version with leadscrew
  • Option : version with linear encoder

Linear actuator
Linear actuator

Linear actuator Ø12mm with integrated ball screw

  • Plug and play Ø12mm actuator, easy to integrate
  • Combination stepper motor Ø12 + integrated high precision ball screw (rotor supported by the ball screw) : best trade off dynamic-precision-compactness-simplicity
  • Excellent positioning precision in open loop
  • Axial force up to 9N
  • Ball screws available : pitch 1-2mm, Ø4-Ø6mm, length easily customizable
  • Option : version with leadscrew
  • Option : version with linear encoder

Linear actuator for high speed positioning
Linear actuator for high speed positioning

Lead screw linear actuator Ø22mm for high speed positioning

  • Plug and play solution, easy to integrate
  • Combination : motor Ø22mm + nearly 0 backlash  (max 0,15°) compliant coupling + preloaded duplex ball bearings + leadscrew
  • Leadscrew : lead of 10mm (speed rate of 10mm/revolution), multiple threads
  • Spindle Ø8mm in stainless steel, nut in PEEK
  • Motor sub-assembly and leadscrew sub-assembly can be easily disassembled (separated) and reassembled
  • Version with a brake available
  • Low noise emission

Versatile coupling system
Versatile coupling system

Versatile coupling system (customizable motor interface)

  • Plug and play solution, easy to integrate
  • 0 backlash  (coupling and ball bearings) system to combine any spindle (ball screw, lead screw, gear) with any motor ~Ø16mm
  • Ball screws available : pitch 1-2mm, Ø4-Ø6mm
  • Option : version with leadscrew
  • Motor sub-assembly and ball screw sub-assembly can be easily disassembled  (separated) and reassembled
  • Speed not limited by the coupling
